Top:
Support form factors 120/140/240/280
Restrictions:
280 radiator:
Maximum length is 358 mm.
Maximum width is 158 mm
Maximum thickness including fans is 63 mm
Front:
Support form factors 120/140/240/280/360
Restrictions:
280 radiator:
Maximum length is 349 mm
Maximum width is 150 mm
Maximum thickness is 40 mm (if GPU support bracket is removed, maximum thickness is 65 mm)
360 radiator with air guide (lower ramp):
maximum length is 405 mm
Maximum width is 125 mm
Maximum thickness is 40 mm
360 radiator without air guide (lower ramp):
Maximum length is 435 mm
Maximum width is 136 mm
Maximum thickness is 40 mm (if GPU support bracket is removed, maximum thickness is 65 mm)
Rear:
120 mm
Restrictions:
Maximum length is 158 mm
Maximum width is 125 mm
Maximum thickness is 55 mm (including fan)

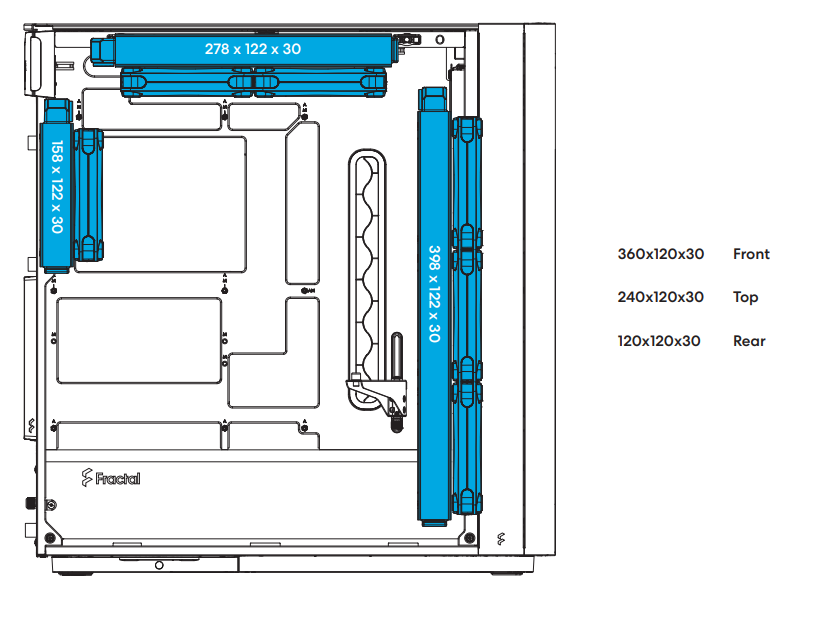

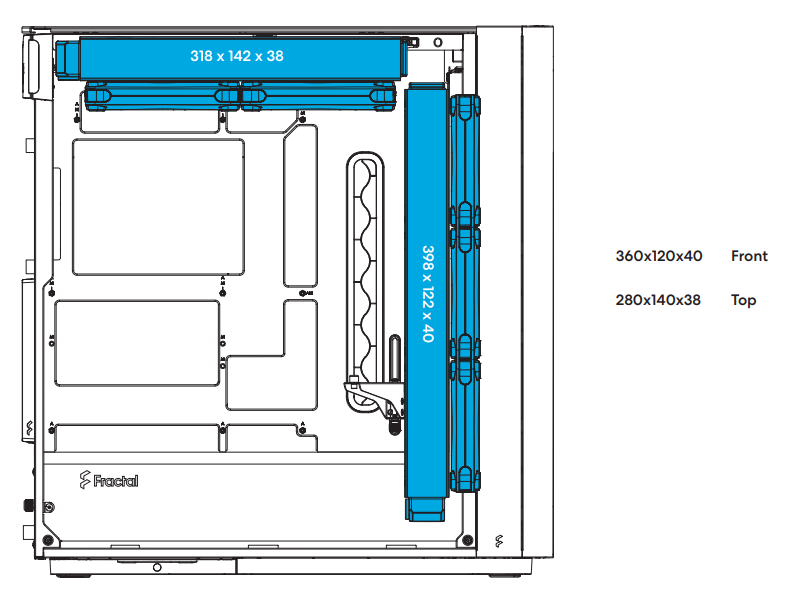

Maximum simultaneous radiator combination is a 240 mm in the top, a 360 mm in the front, and a 120 mm in the rear.. Without rear radiator installed, the maximum is a 280 mm in the top, and a 360 mm in the front.

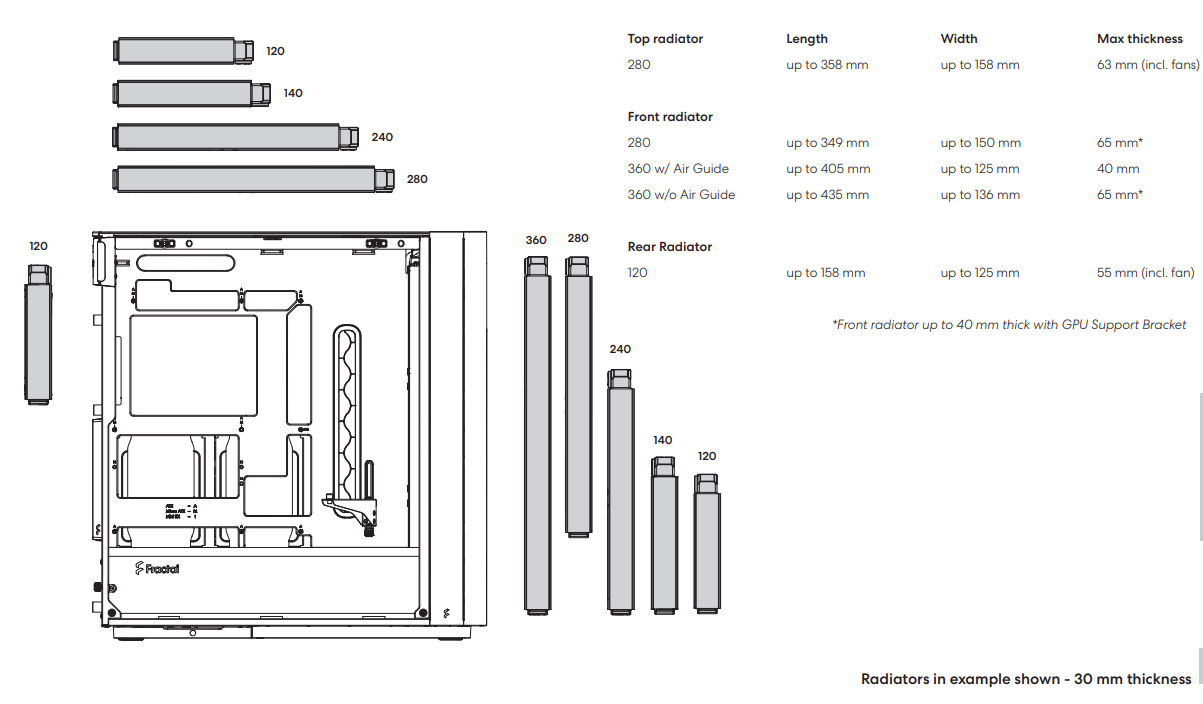

See below for maximum measurements of each radiator:
These are our recommended max length and thicknesses. It is possible to have slightly thicker front and top radiators at the same time, but tubing can be extremely difficult going past these measurements.
